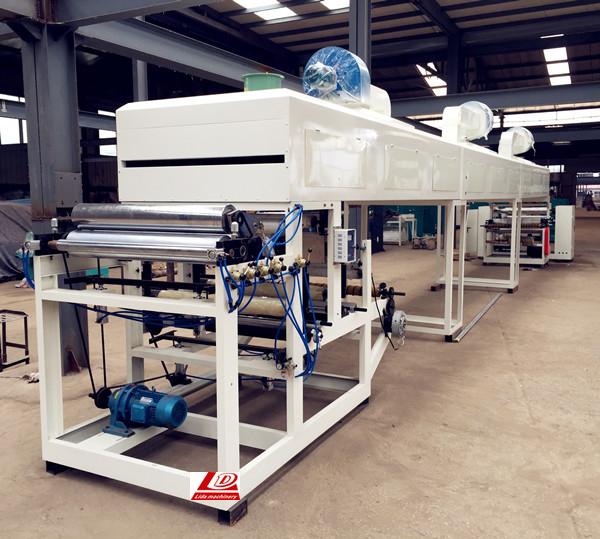

Low investment Small multifunctional adhesive tape coating machine

This multifunctional adhesive tape coating machine can produce different length & sizes of clear tapes, printed tapes and color tapes with good quality.

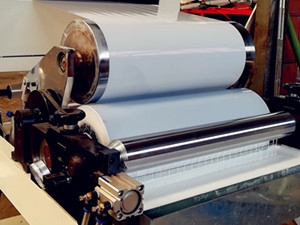

Coating & Gravure printing:

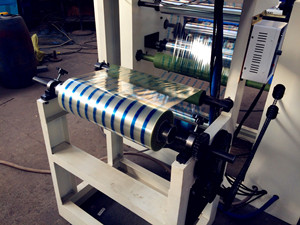

Correction device & tape jumbo roll:

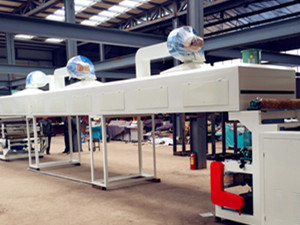

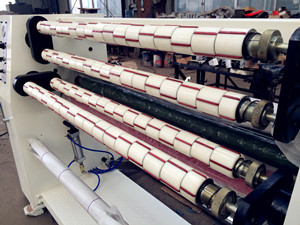

Oven & Four shafts rewinder:



Feature of this adhesive tape coating machine:

1. Motor: 2 motor with inverters speed adjusting

2. Printing: 1-2 colors gravure printing

3. Coating: comma blade Transfer coating, making different coating thickness on same machine.

4. Temperature: Segmented temperature control. when the temperature reach the set figure , it will auto stop heating . same for auto heating .

5. Slitting: 4 rewinding shafts for making tapes .& jumbo roll rewinding shaft for making jumbo roll.

6. EPC: Sensitive infrared ray can monitor the film walking in right rewinding direction.

so the tape rewinding edge will be flat & nice.

Technical parameters of adhesive BOPP gum tape making machine:

Coating width	500mm, 1000mm	Temperature control	Max 120℃
Coating method	Comma blade,transfer coating	Rewinding edge flatness	Error≤1mm
Max unwinding diameter	600mm	Printing working width	500mm, 1000mm
Max rewinding diameter	200mm	Power loading	15kw
Mini rewinding width	1 inch	framework	12# square steel tube
Drying method	Inbuilt water tank heated by electricity	Coating speed	0-40m/min

Raw material:

Production process of the adhesive BOPP gum tape making machine:

Before we start the production, we need to cut the long paper core to suitable width with the paper core cutter, then we use the paper core loader to make the small paper tubes attached on the slitting shaft.

1. set the OPP film on the raw material shaft.
2. print on the film(or you don’t print).
3. glue the film.
4. dry the glue through the oven.
Finally, slit the film into small tapes or make the film into a jumbo roll.

To get a complete system, maybe you will also need other three machine: core loader, core cutter and rewinder.

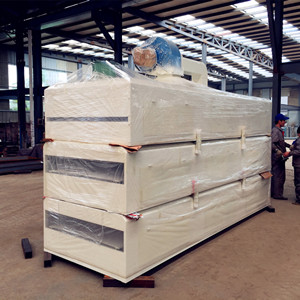

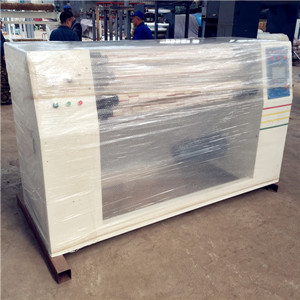

Packing of this coating machine:
